Review

Logs and Flight Review

Two kinds of log, and one reviewer for both. The aircraft writes a detailed log on its SD card; Corvus records the telemetry it received on this laptop. Either can be reduced to the plots and findings that answer "was that flight healthy?", on your own machine, with nothing uploaded anywhere.

Vehicle logs

ANALYSIS in the left rail lists the logs on the flight controller's SD card. Tick several and walk away: they are downloaded one after another with a progress bar, and Cancel works throughout. Files land as log_<id>_<UTC date>.ulg, so they are still recognisable a month later, in ~/.corvus/flightlogs by default.

On ArduPilot the on-board log is DataFlash (.bin). It downloads the same way and lands in the same folder, but Flight Review reads ULog only: it names the format and points you to Mission Planner rather than failing obscurely. Telemetry Review, below, works on both stacks.

Recorded telemetry (tlogs)

Corvus records the MAVLink stream it receives, from the first frame of every connection, without being asked. There is one file per flight: when the aircraft disarms after a flight, the file is closed and the next one begins. This is the log that always exists, even when the aircraft's own log does not. Tlogs are written to ~/.corvus/logs by default, and every file records the Corvus version that wrote it.

The LOGS page in the left rail is something else: the console transcript of this session, which you can copy or export for a bug report.

Flight Review

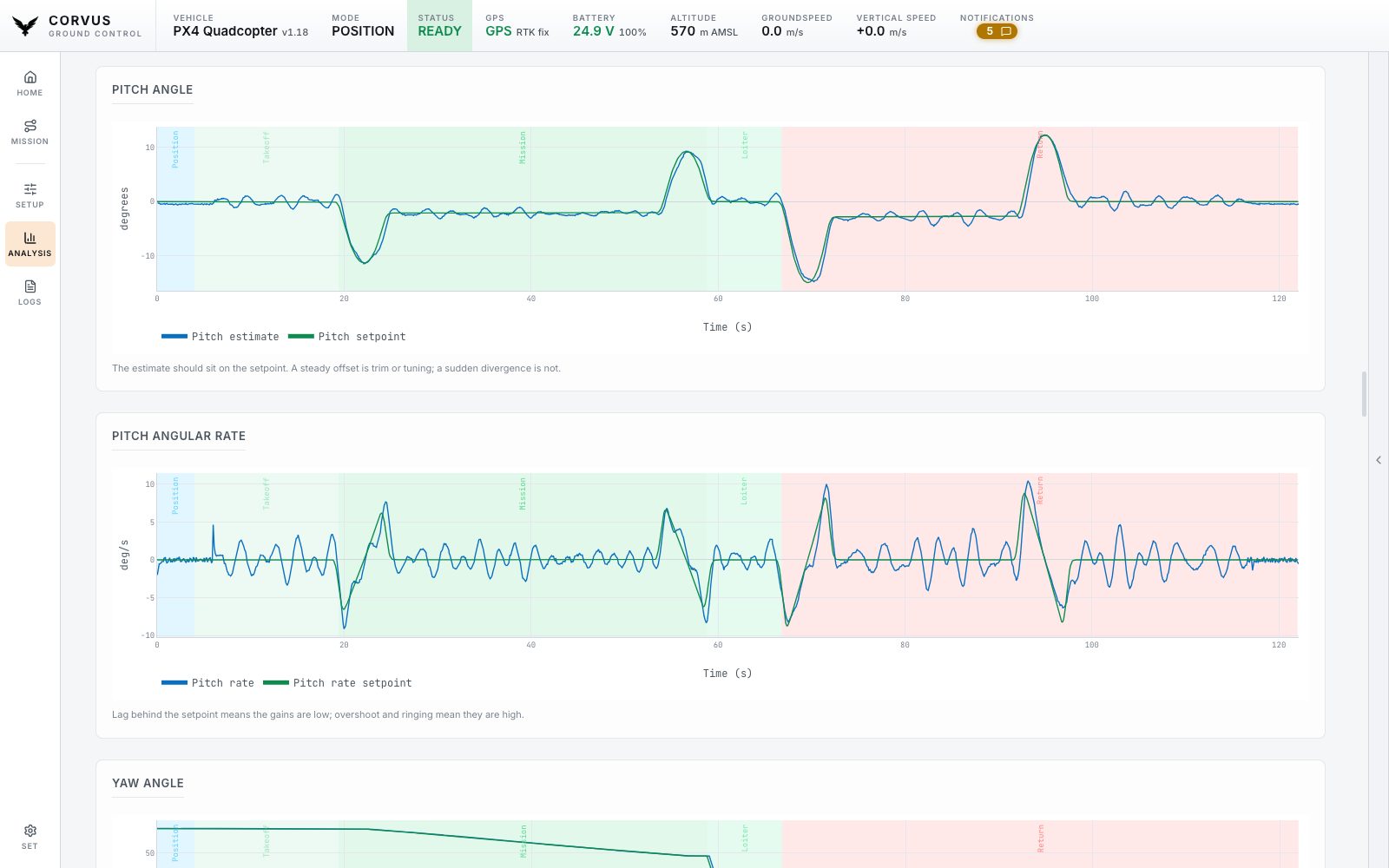

Pick a downloaded log and Corvus reduces it to the plots that answer "was that flight healthy?": motors, clipping, the estimator (EKF), battery and more, with findings above the plots and the aircraft's own messages below, filtered by severity. A log that never came through Corvus can be opened too, from anywhere on your machine. Everything is parsed locally.

Findings

The findings name the problem and say where to look. Each one is a single line you can scan, with the reasoning behind it one click away: the explanations are a paragraph each, and a dozen paragraphs stacked up would hide the one line that mattered. Problems come first, in order of severity; context worth knowing but needing no action folds away under "2 more observations".

Every finding carries the second of the flight it was measured at and the mode being flown then, and so does every line of the aircraft's message log, so a claim at the top of the page and the dip in the plot that caused it line up.

What it reads beyond thresholds

• A motor held at full output, and for how long.
• How long the estimator actually rejected a sensor, rather than only how high the innovation spiked.
• In-flight position and heading resets.
• PX4's own failure detector firing.
• A compass whose field strength rises and falls with the throttle: interference in the power wiring, not a calibration to redo.
• A rate loop ringing, at a named frequency and amplitude.
• ESC RPM where the ESCs report it, plotted beside the commands: commands say what was asked for, RPM says what happened.

What it deliberately does not say

One alarm about something ordinary costs every other finding its credibility, so:

• A motor at its limit is only reported when the others still had headroom. All of them together is a hard climb, not a failure.
• An estimator reset counts only in the air, since every counter ticks when the first GPS fix arrives on the ground.
• Compass interference needs a physically believable swing before the wiring is blamed.
• A brief innovation spike is an observation rather than a warning, because it is only a problem when it lasts.
• The heading alignment PX4 makes after every takeoff is context, not a warning.
• The battery is judged by the level the pack held, not the one sample at the hardest punch, and sag is measured over a few seconds, not from full to empty.

Sensitivity

How readily a number becomes a finding is yours to set, once, under Settings, Analysis (or in the first start setup):

The plots are the same at every setting, and the page says which setting its findings were read at. Whatever the setting, only the time the aircraft was armed is measured: clipping counted on the bench, a refusal to arm, a receiver that never heard a transmitter and a GPS still looking for its first fix are not the flight.

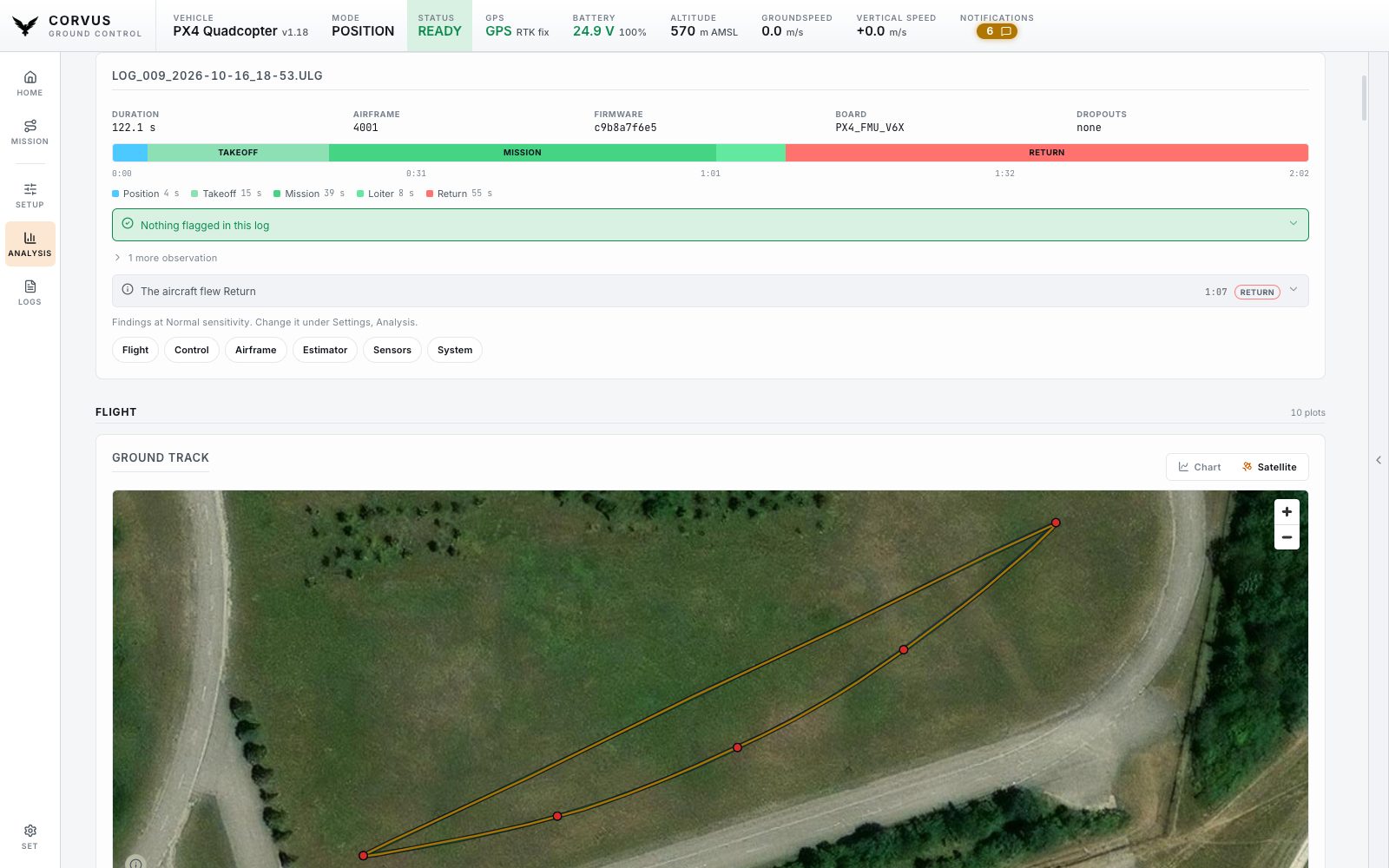

The ground track

The ground track has two readings, with a switch in its corner:

Chart

Metres north over metres east on equal axes, which makes the gap between the estimate and the GPS measurable.

Satellite

The same path over the map imagery, at the place it was actually flown (the field, the runway, the tree line the turn was flown around), through the same tile cache the map uses, so it works offline wherever those tiles were downloaded.

A flight with no global reference (indoors, or without a fix) has no origin to place on the Earth, and offers no switch rather than a guess.

Telemetry Review

The same page, for a tlog instead of a ULog. The ULog is the better log, and when you can get it, it is the one to read. Telemetry Review exists because you cannot always get it: the SD card was not fitted, the download would take an hour over a 57600 link, or the aircraft did not come back. Corvus recorded the flight on this laptop either way, so pick a tlog and it is reduced to the same plots, the same mode and armed bands, the same findings and the same message log, drawn the same way, so the two read alike.

What a tlog can and cannot show

The page states this itself rather than leaving you to find out:

• Telemetry arrives at 1 to 50 Hz, not a ULog's 200 to 1000 Hz. An oscillation is visible; the shape of one cycle is not.
• There are no motor outputs and no data per IMU, because those never leave the aircraft.

What only a tlog has: the link

RADIO_STATUS, the drop counters and the signal strength at both ends describe the radio between you and the aircraft, which a log written on board cannot know about. That includes the stretches where the link went silent, measured against the pace that recording actually kept rather than a fixed threshold, so a slow radio is not reported as a fault.

A recording that ends with the aircraft still armed is said first and plainly, because that is the log somebody reads when an aircraft did not come home. The vehicle's own verdict is read too: the subsystems it reported as configured but not healthy, and the glitches its estimator flagged.

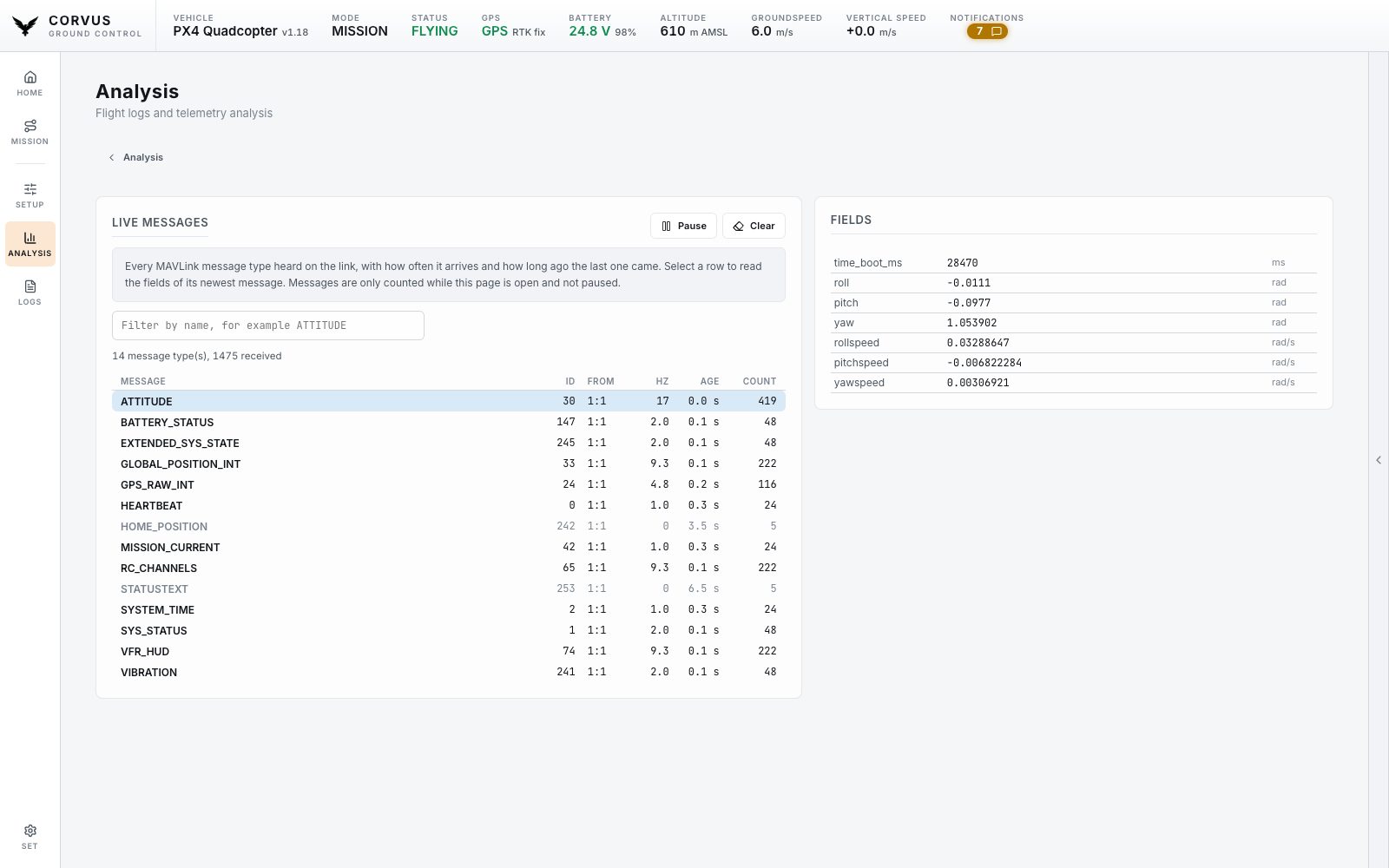

Live Messages

The fourth tile on the Analysis page is not a log but the link itself. Live Messages lists every MAVLink message type the aircraft and anything else on the link is sending: its name and id, which system and component sent it, how many arrive per second, how long ago the last one came, and how many there were. A message that has gone quiet is dimmed.

Select a row and the fields of its newest message are listed beside the table and refresh while you watch. The filter narrows the table by name. Pause holds the picture still, and Clear starts the counting again from zero. Nothing is counted while the page is closed or paused, so the view costs the link nothing when you are not using it.
